OPD100 Mobile Crane Safe Load Indicator - Hydraulic System Large

OPD100 Mobile Crane Safe Load Indicator - Hydraulic System Large

Regular price £3,950.00 GBP
Regular price Sale price £3,950.00 GBP
Sale Sold out

This system is sized for cranes with booms bigger than 20m and 1 Hoist rope



About the OPD100 System

This Safe Load Indicator is a reliable, easy-to-use system that is suitable for both Telescoping and Fixed Boom Cranes.

The easy self install OPD100 Safe Load Indicator (SLI) is a device which is installed on mobile or portal cranes to alert the operator if the lift is exceeding the safe operating range of the machinery. The device will physically lock the machinery in circumstances it determines to be unsafe. The OPD100 systems is composed of a microprocessor connected to various sensors on the crane itself. The OPD100 measures the angle and extension of the boom along with the load weight and compares this with the manufacturer's specifications to determine if the lift is safe.

The OPD100 has the capability of detecting the angle, weight of load lifted, and ground radius of the lifting device. It controls the lifting equipment to the level that it tries to keep the machinery functioning as per the manufacturer's suggested safety charts.

The crane is fitted with multiple sensors, for each of the measured parameters, which are then further displayed in the operator's cabin for his benefit.


System includes:

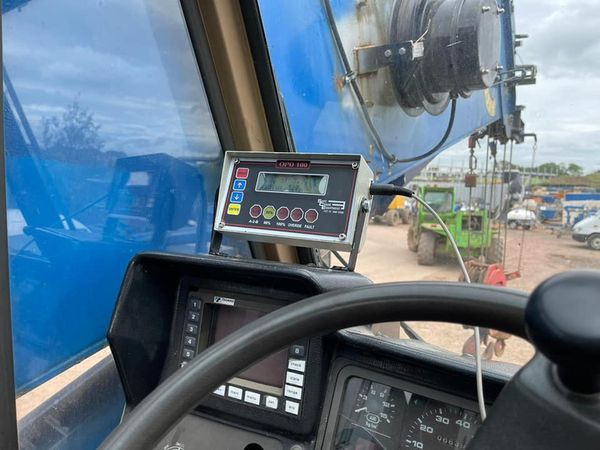

LCD Display unit,

Relay junction box

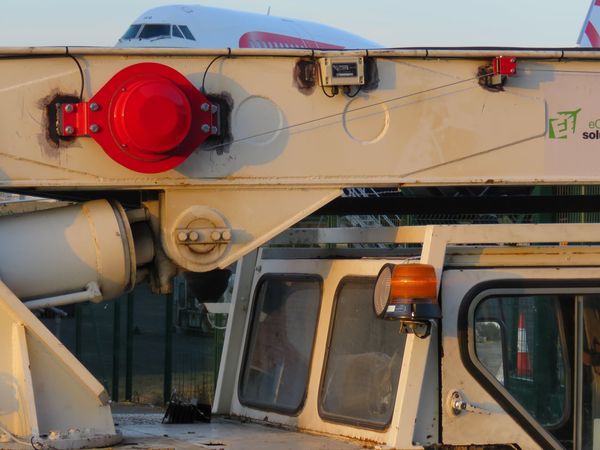

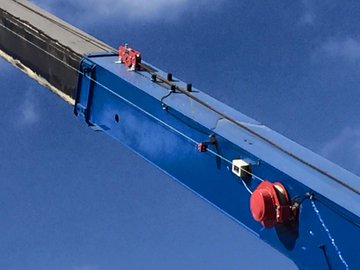

Cable Recoil Drum, boom length sensor, digital boom angle sensor  Rope Rider Dynamometer,

Over hoist switch (A2B), counterweight & cable guides

All cables required.

Please contact us for further details, regarding shipping and fitment of the system.
